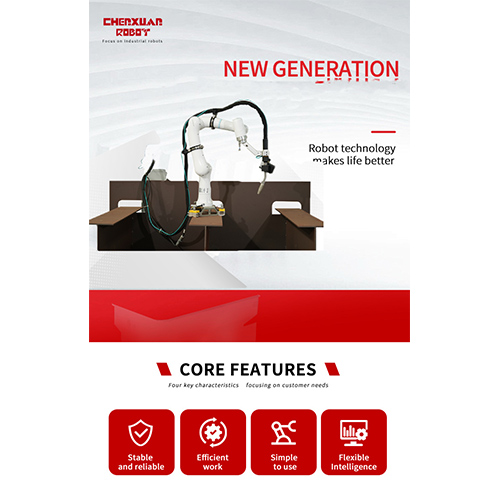

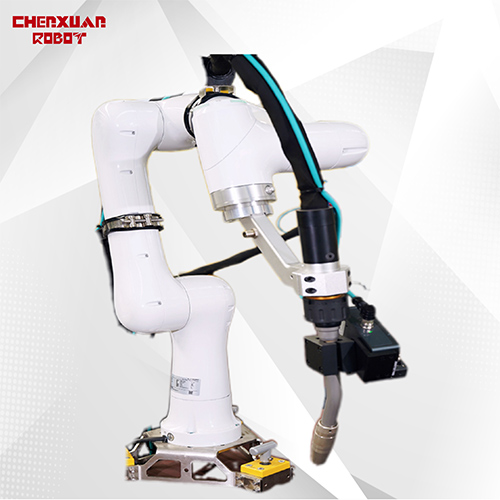

6-Axis Collaborative Robotic Arm, 5kg Payload,919mm Reach, Ideal for Industrial Welding Applications Transfer and Finishing
Parameter:
| Repeatability | ±0.02 mm | Reach | 988 mm |
| Material | Metal | Type | welding head |
| voltage | 380 V | max input power | 500W |
| Welding Mode | MIG | machine type | Welding robot |
| condition | New | warranty | 1 Year |
| IP Rating | IP54 | Maximum Speed at Tool End | ≤3.2 m/s |
| Operating Temperature | 0°C~50°C | Mounting Method | Mounting at any angle |
Open Functional Modules
1.Bevel Adaptive: Unrestricted Flexibility
1. Automatic adjustment and optimization of welding paths can be achieved solely by teaching corresponding points, enabling intelligent adaptation to irregular grooves.
2. The "surface recording" functionality addresses angular deviations in grooves caused by machining errors through automatic groove angle calibration.
2.Multi-layer Multi-pass Weld Bead Fine-tuning
1. The system autonomously plans multi-layer, multi-pass trajectories with clear logic.
2. It precisely controls inter-layer and inter-pass gaps, and easily adapts to adjustments from minor tweaks to major changes through weld pass micro-adjustment.
3. For full penetration welds, even if groove dimensions change due to back gouging, the "trajectory reload" feature automatically recalibrates the welding paths
A Diverse Array of Arc Swing Configurations
1.For medium and heavy plate welding, four commonly used arc oscillation patterns are designed to suit most application scenarios.
2.For vertical seam welding, each pattern supports independent process parameter settings, providing high flexibility
3.In complex multi-layer and multi-pass welding, parameters can be adjusted in batch or individually for efficient configuration.
