Smart Painting Robot: High Uniformity Spraying & Coating Line Upgrade

A brief introduction of the product

High coating uniformity & automated coating line modernization solution.

Our intelligent 6-axis spraying robot delivers precise, high-uniformity painting for automotive, metal, furniture and manufacturing industries. With stable programming, flexible movement and even coating coverage, it effectively reduces paint waste, improves surface finish quality and ensures consistent output batch after batch.

This fully automated painting solution supports seamless integration and upgrade of existing coating production lines, replacing manual spraying to enhance safety, efficiency and productivity. It adapts to complex workpieces, various paint materials and diverse process requirements, helping enterprises achieve intelligent, standardized and cost-effective industrial coating with reliable performance and long service life.

Product Detail

Product Tags

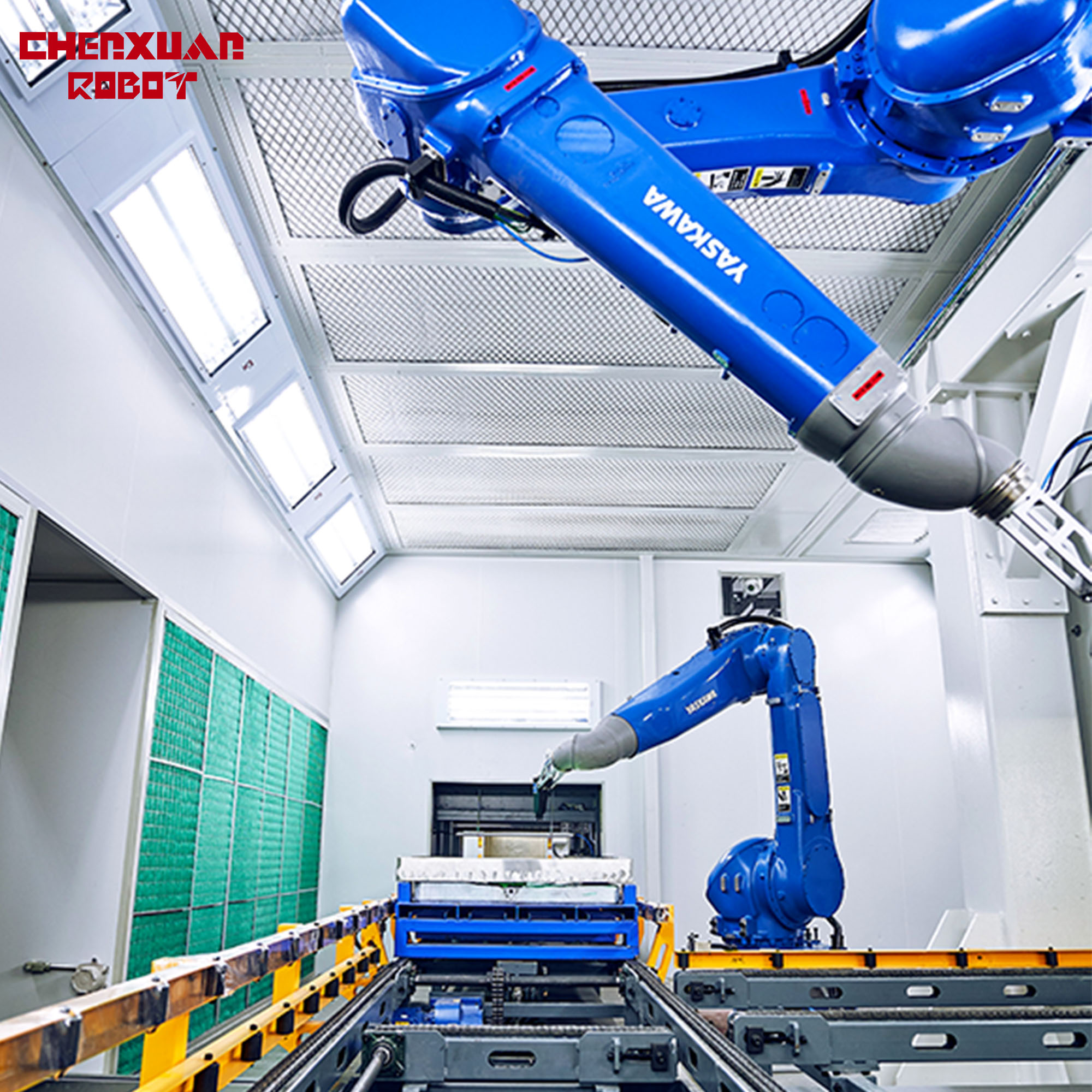

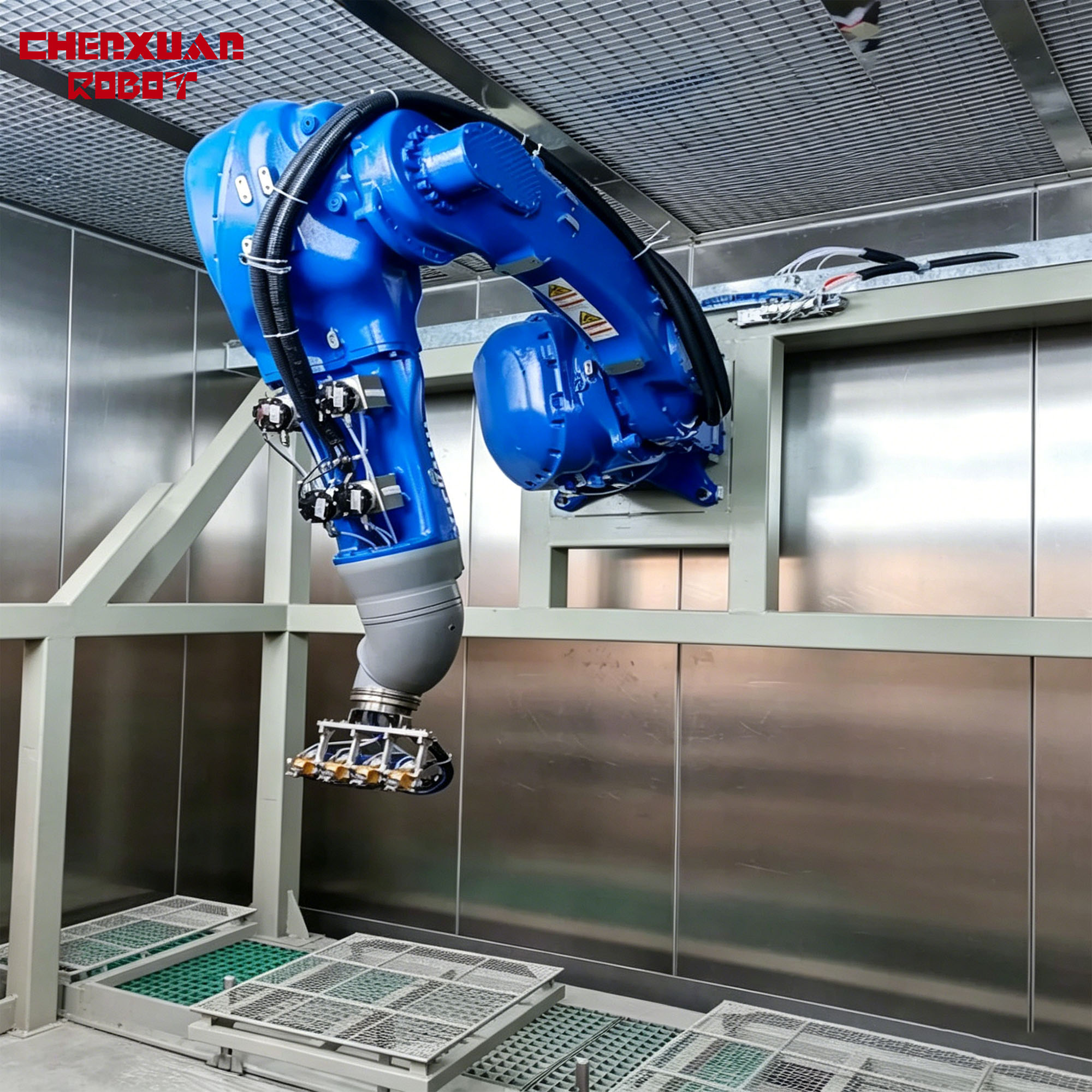

Product application scenario diagram

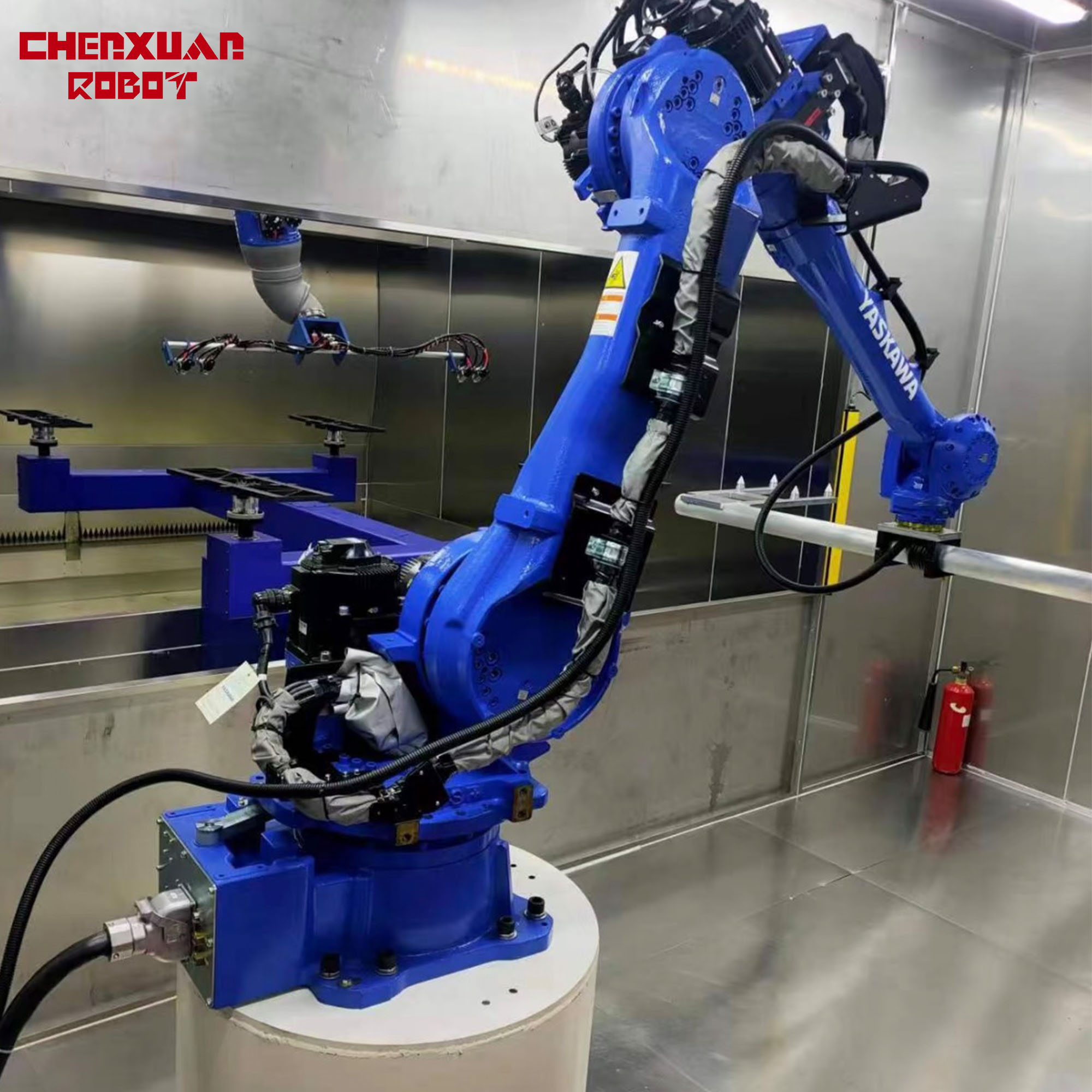

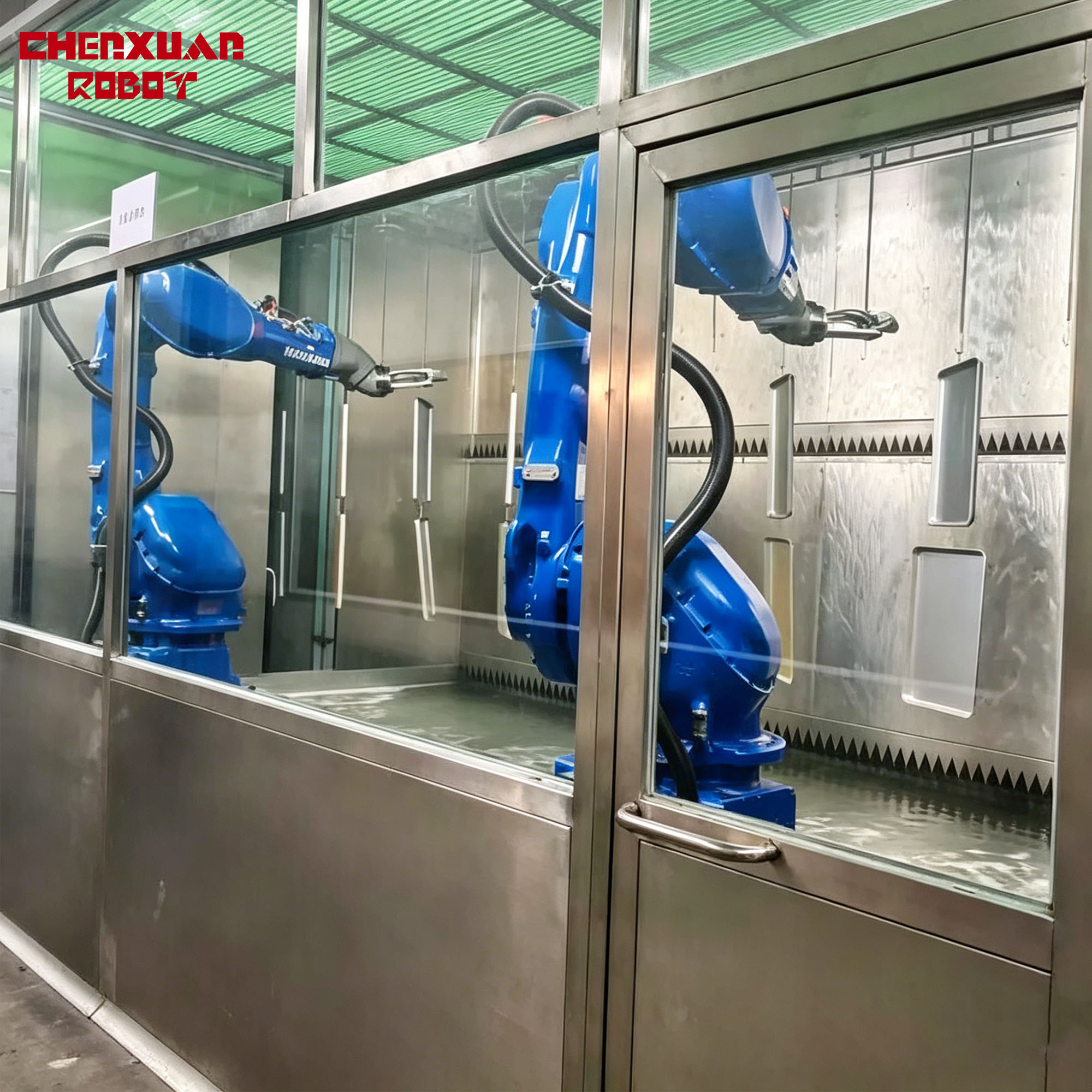

Product detail images

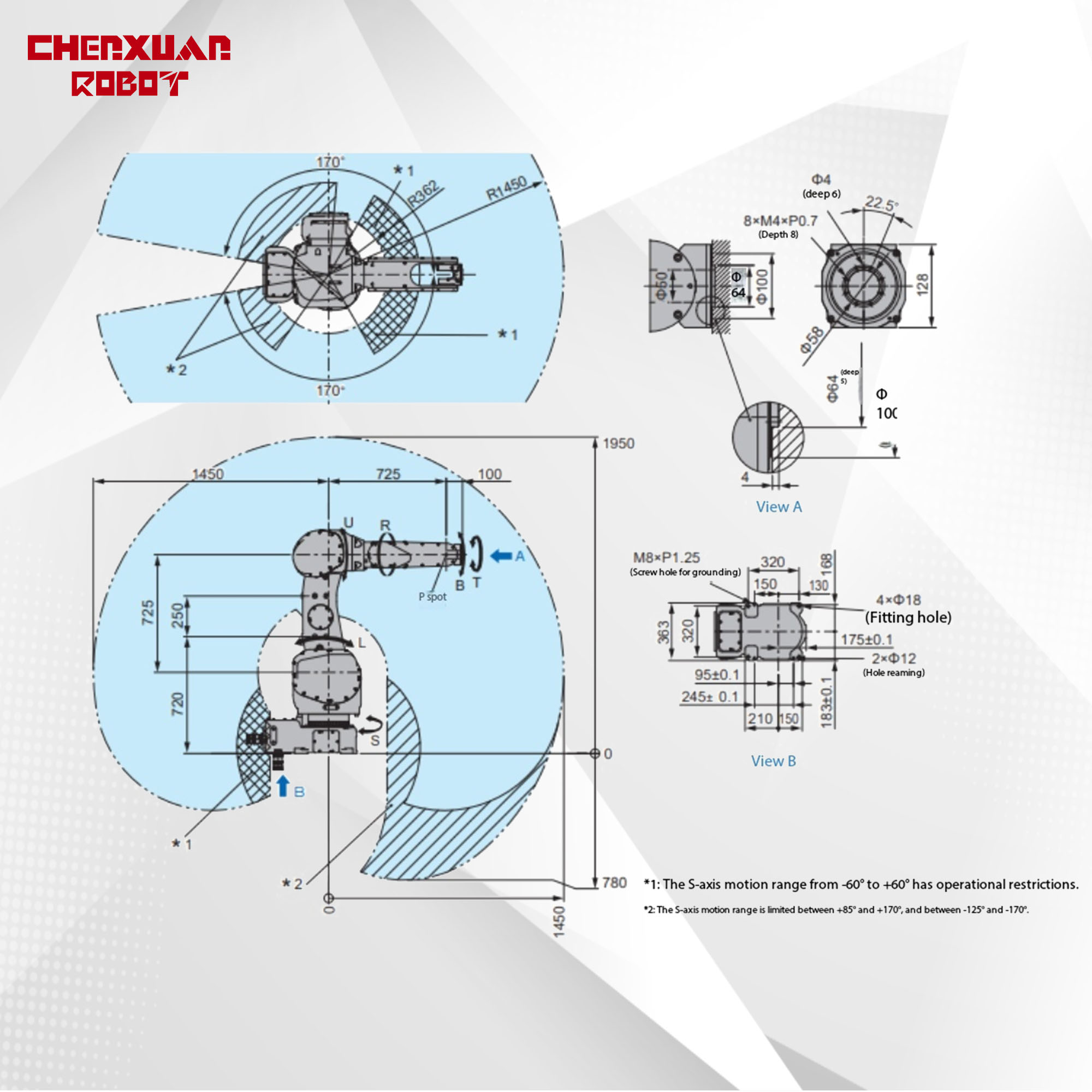

This technical drawing details the spraying robot's full motion envelope, with a maximum reach of 1450mm and vertical stroke of 1950mm. It clearly marks S-axis motion limits, interference zones, and precise flange/installation dimensions. This diagram ensures accurate layout design, end-effector integration, and reliable operation for automated spraying, coating, and surface finishing applications.

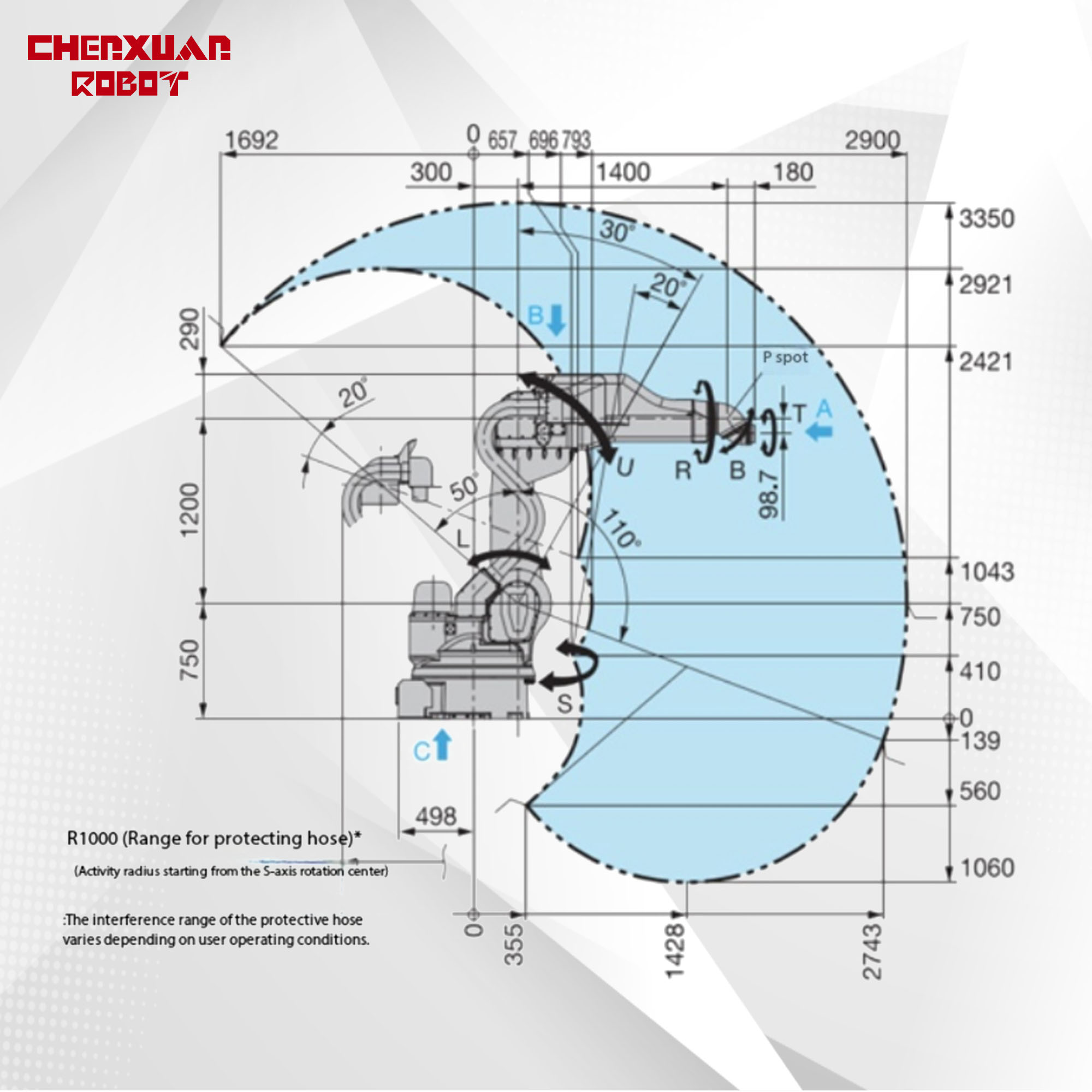

This technical drawing details the full working range of the industrial spraying robot, with a maximum horizontal reach of 2900mm and vertical stroke of 3350mm. It clearly marks the protective hose interference range (from the 5-axis rotation center) and multi-axis motion limits. This diagram ensures precise layout design, hose routing verification, and optimal compatibility for automated spraying, coating, and surface treatment workflows.

Product Highlights

6-axis linkage for high flexibility, 360° dead-angle-free spraying, ideal for special-shaped workpieces.High spraying uniformity, small color difference, consistent film thickness, improves product finish & pass rate.Supports 24/7 stable operation, maximizes output, shortens production cycle, meets large order demands.Easy to operate with visual programming, no complex skills needed, reduces training cost & threshold.Explosion-proof & dust-proof design, fits harsh workshop environment, ensures safe & stable production

High-protection body, paint mist & corrosion resistant, extends service life, reduces long-term O&M cost.Multiple safety protections, supports human-robot collaboration, no full fence needed, saves workshop space.Multi-process for painting, powder coating & gluing, fits hardware, auto parts, home appliances industries.Modular design for easy maintenance, convenient parts replacement, reduces downtime, improves OEE.Fast motion response, short spraying cycle, increases per-hour output, reduces per-unit coating cost.High-rigidity body, stable operation without shake, ensures precise spraying, improves product consistency
