The Spray Painting Robot Can Adapt to High-viscosity Paints

A brief introduction of the product

  • Number of Axes:6 axes (7 axes when rail-mounted)
  • Repeat Positioning Accuracy:±0.15 mm
  • Wrist Payload:7 kg – 25 kg (depending on model)

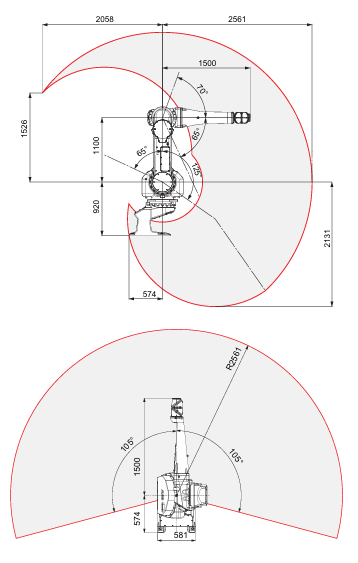

  • Max Working Radius:1.35 m – 2.7 m (depending on model)
  • Protection Rating:IP 6 6 (robot body), IP 5 4 (wrist)
  • Spray Efficiency:40%-60% higher than manual spraying
  • Paint Utilization Rate:Up to 92% (with electrostatic spray technology)

Product Detail

Product Tags

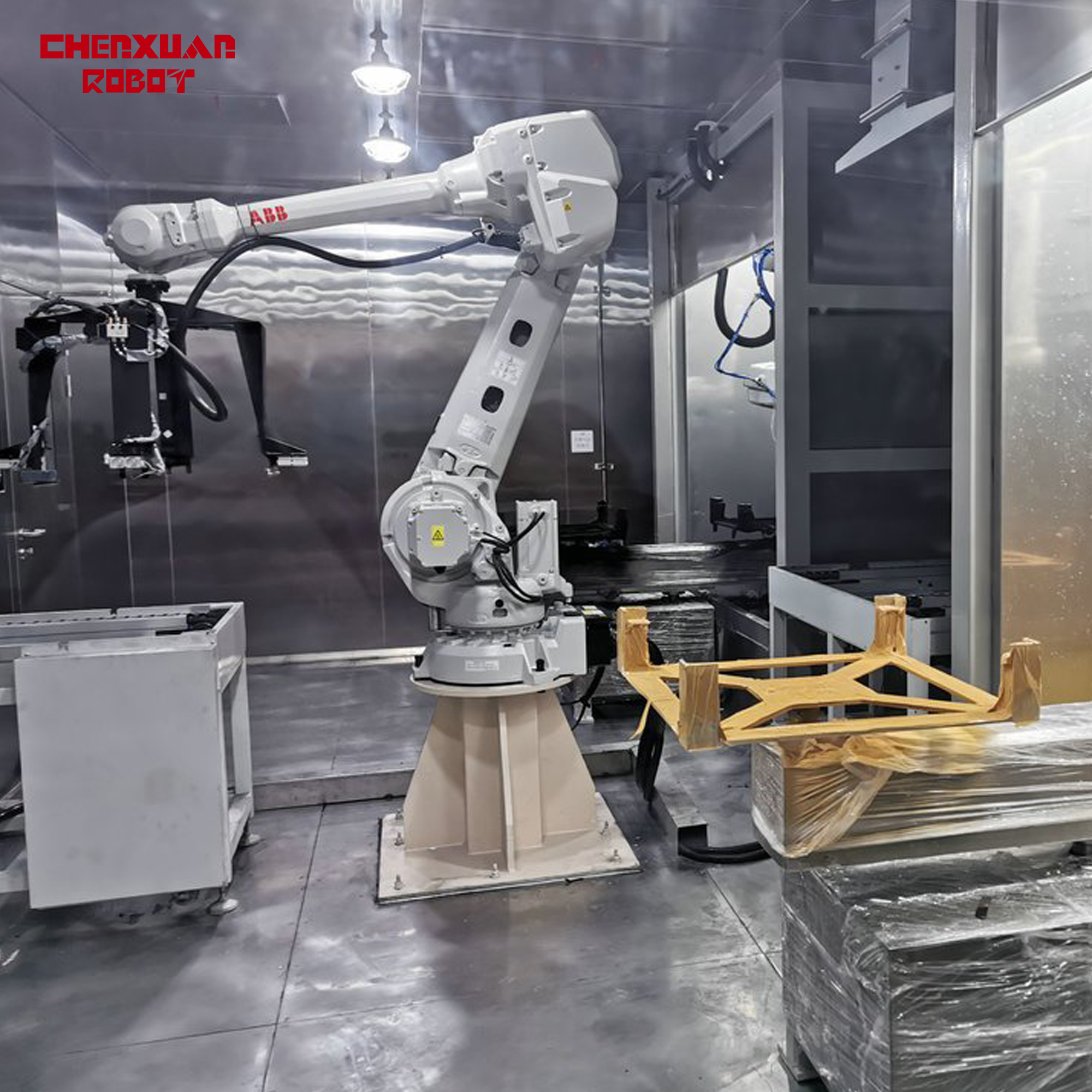

Product application scenario diagram

 robotic painting
spray painting robot
painting

Product Introduction

Industrial Automatic Spray Painting Robot
The spray painting robot operates in a closed spray booth, realizing complete man-machine separation, which fundamentally eliminates the risk of operators being exposed to toxic solvents, paint mist and flammable gases, avoiding chronic poisoning, respiratory diseases and other occupational health hazards associated with manual spraying.
ATEX Explosion-Proof
Safe for hazardous environments
6-Axis Flexible Arm
Full-range motion & reach
Easy Programming
Quick setup, minimal training
High Precision Coating
Consistent finish quality

Designed for high-volume industrial production, the spray painting robot can operate continuously 24 hours a day, 7 days a week without rest, eliminating the fatigue and efficiency decline associated with manual spraying.

 robotic painting

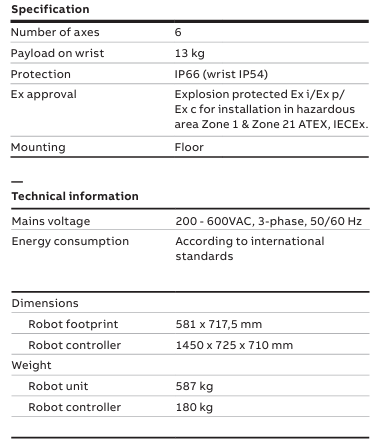

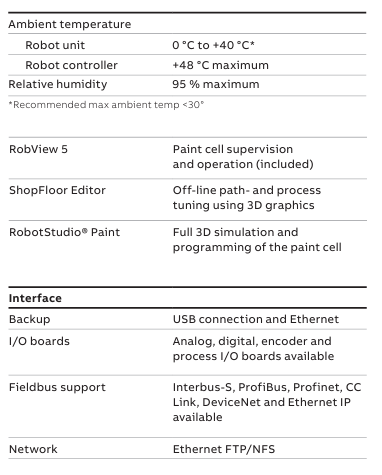

Product Information

 robotic painting
 robotic painting

Other Model Products

IBR
IBR
IBR
IBR5500

Supplier Introduction

a a a a a
