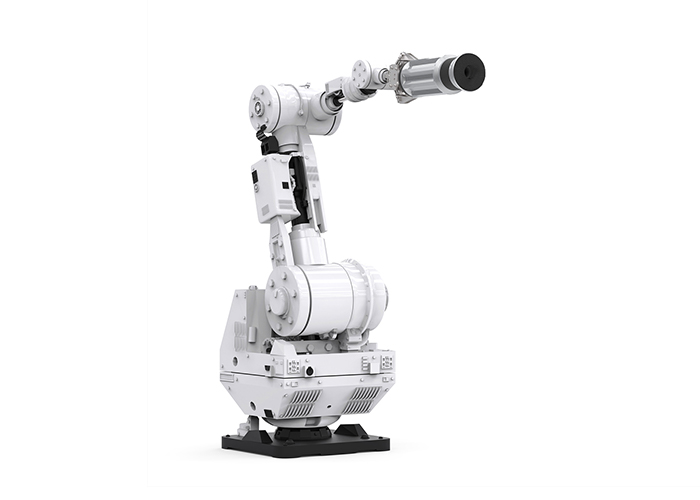

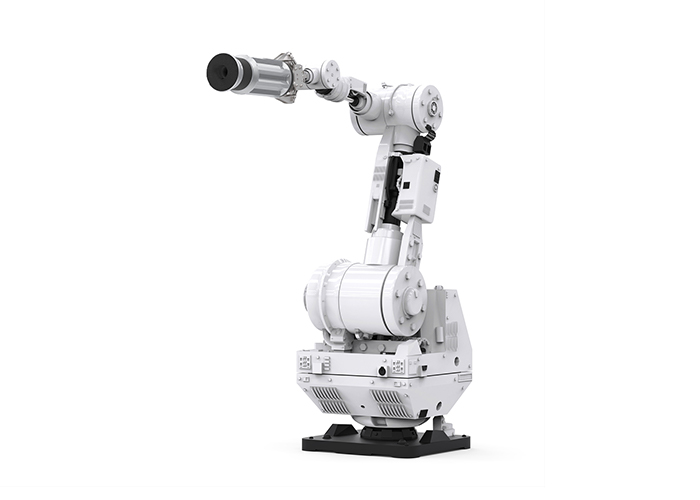

Transport robot SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

A brief introduction of the product

Transportation industrial robots are mainly used in grinding, polishing, loading and blanking onto/from machine tools, automatic transportation for stamping automatic production lines, etc. The transportation robot is an automatic product which uses robot’s motion track to replace manual transportation. Its advantage is that it can accomplish all kinds of expected tasks by programming. It combines the advantages of both human and machine in its structure and performance, especially embodying artificial intelligence and adaptability.

Product Detail

Product Tags

Technical Parameters

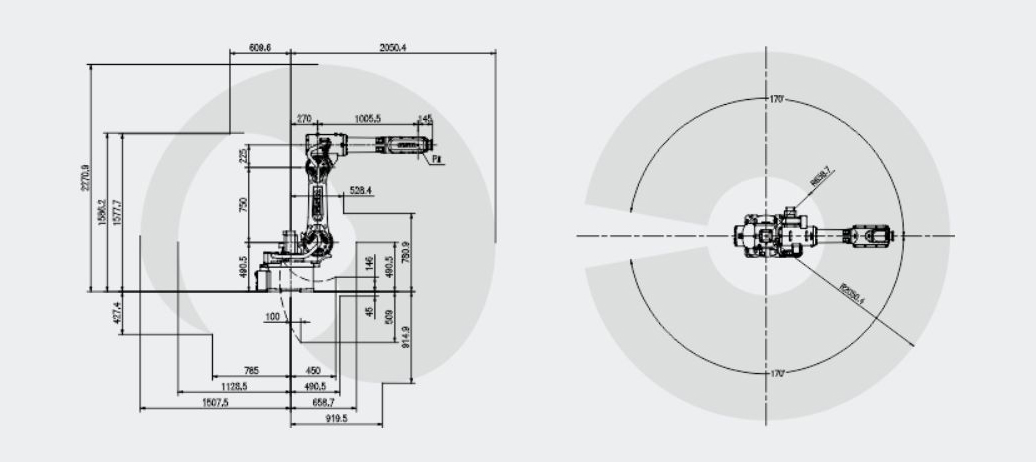

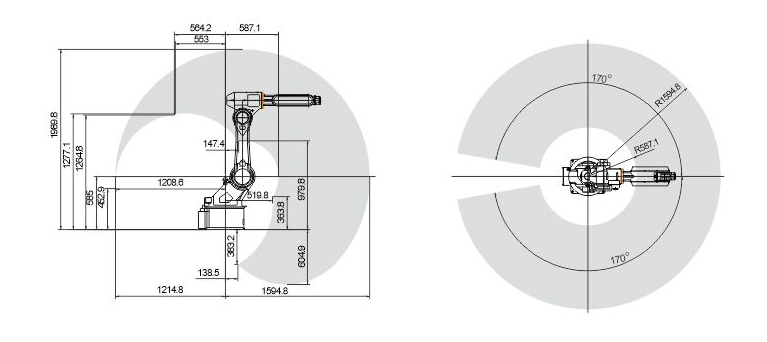

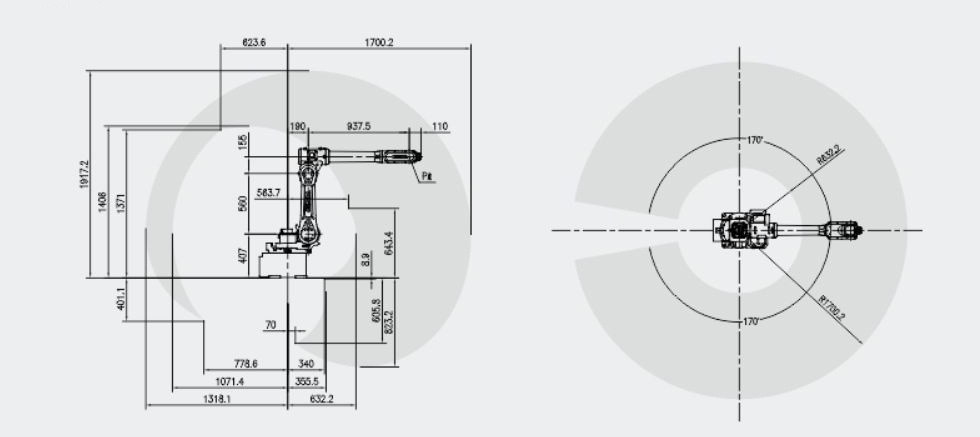

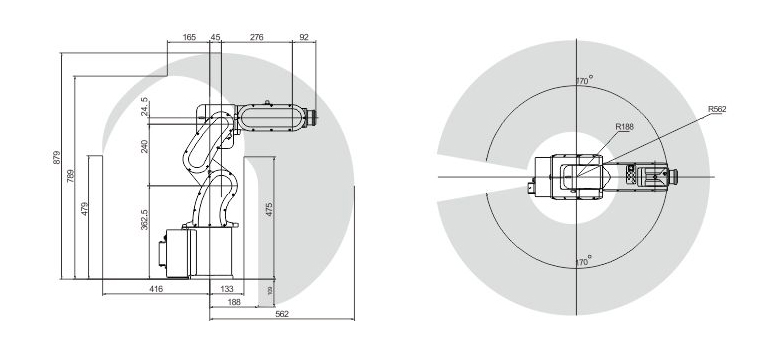

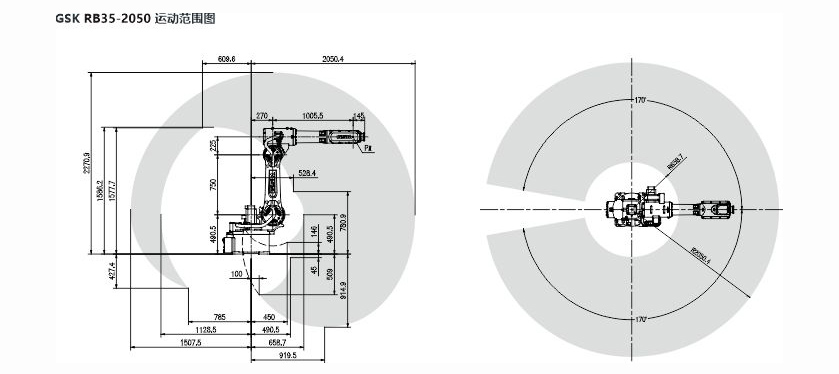

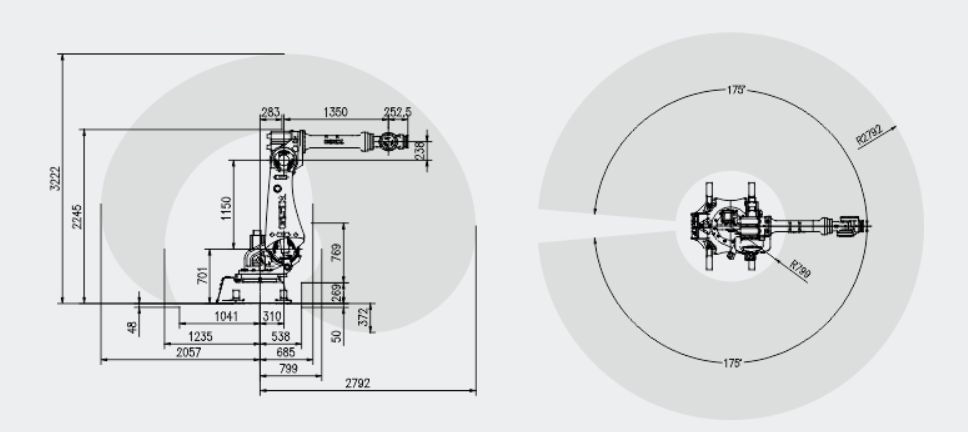

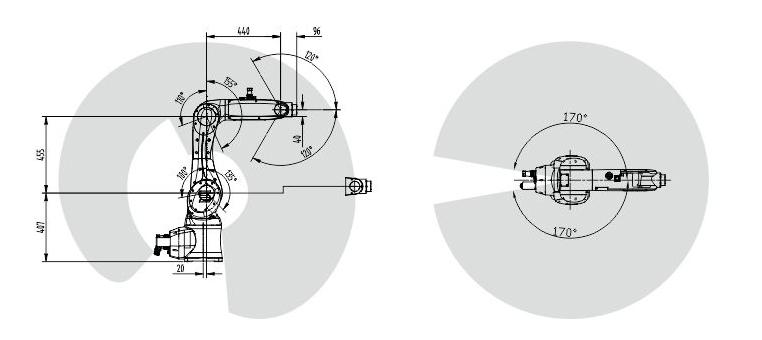

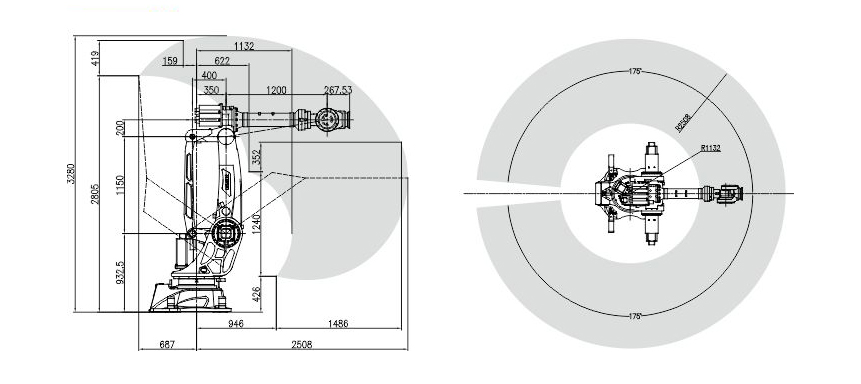

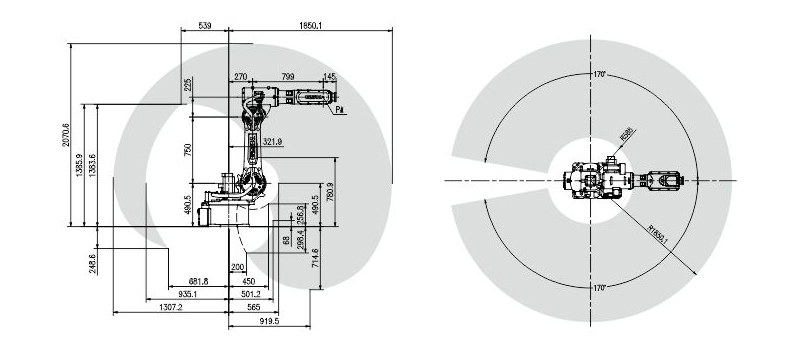

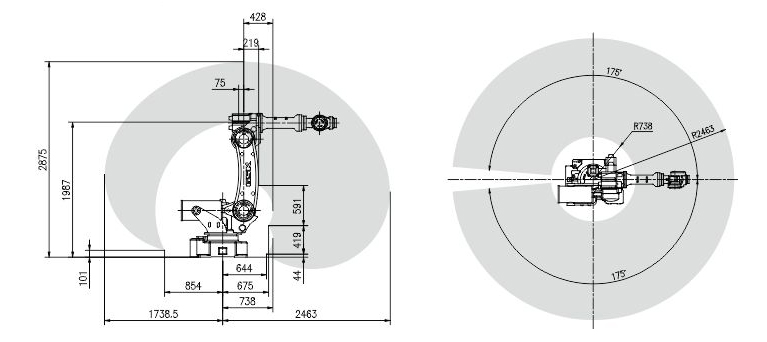

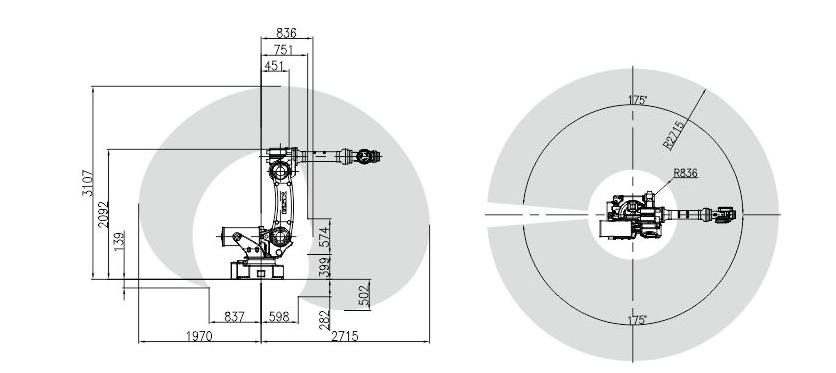

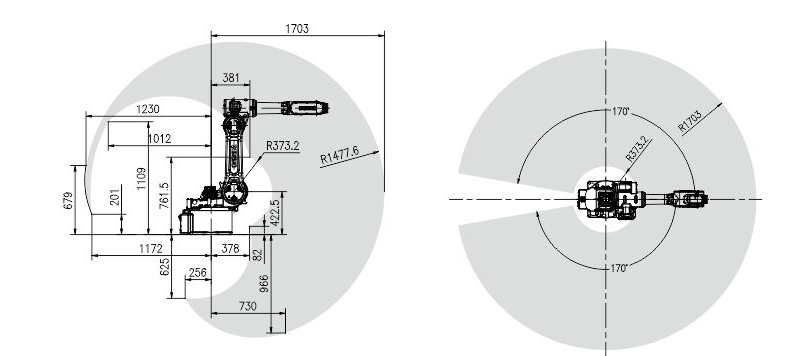

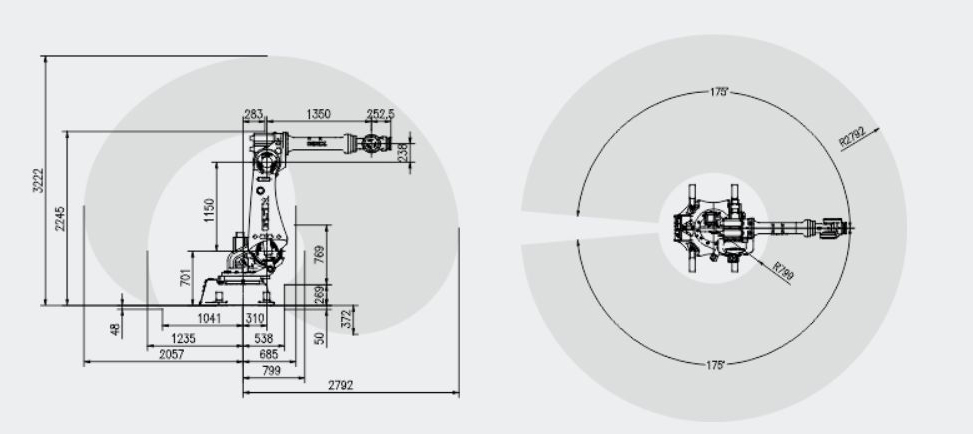

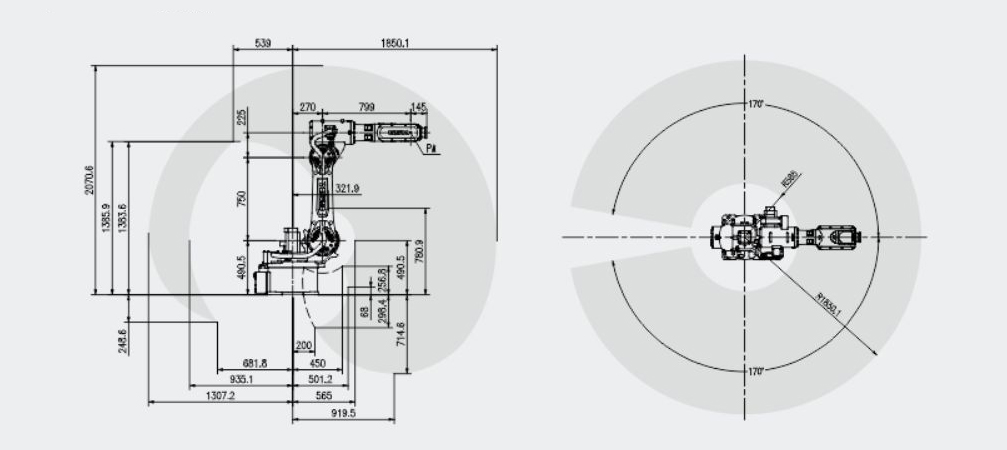

Model No.		Degree of Freedom	Driving mode	Payload (kg)	Repeated positioning accuracy (mm)	Range of motion (°)						Maximum speed (°/s)						Maximum allowable torque (N. m)			Radius of motion (mm)	Deaa weight (kg)
Model No.		Degree of Freedom	Driving mode	Payload (kg)	Repeated positioning accuracy (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Radius of motion (mm)	Deaa weight (kg)
SDCX-RB03A1		6	AC servo drive	3	±0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	AC servo drive	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo drive	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180

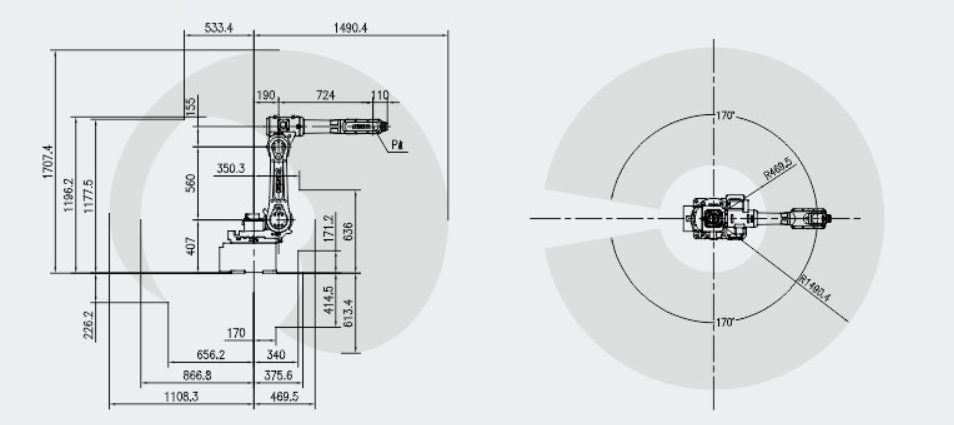

SDCX-RB08A3-1490		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185
SDCX-RB08A3-1700		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187

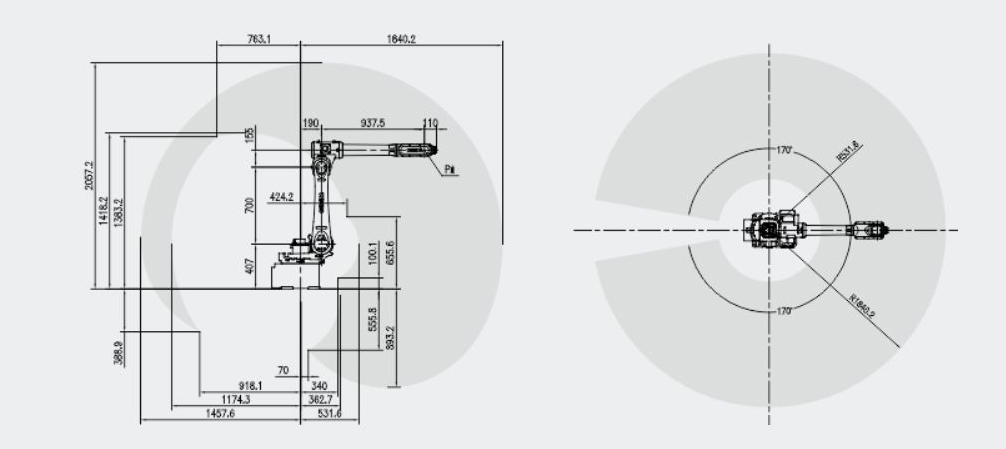

SDCX-RB08A3-1840		6	AC servo drive	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	AC servo drive	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
SDCX-RB20 Series	SDCX-RB06-2060	6	AC servo drive	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285

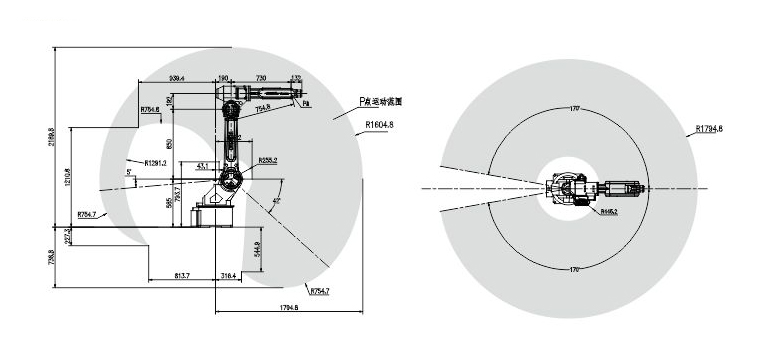

	SDCX-RB15L	6	AC servo drive	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300
	SDCX-RB20	6	AC servo drive	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	AC servo drive	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600
SDCX-RB130		6	AC servo drive	130	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420

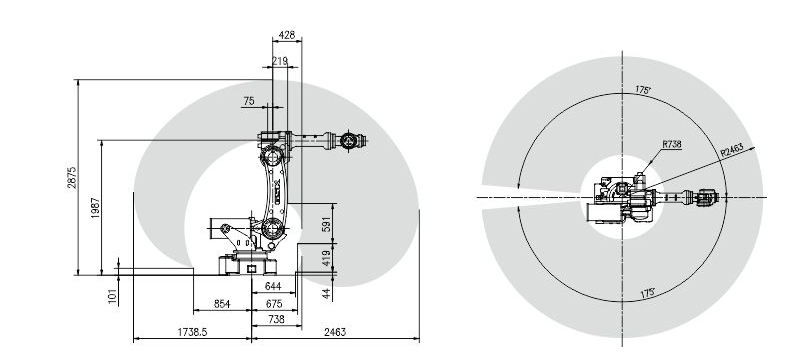

SDCX-RB165		6	AC servo drive	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo drive	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	AC servo drive	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Avoid the contact with inflammable, explosive and corrosive gases and liquids; Do to be not splashed with water, oil and dust; Keep away from electrical noise sources (plasma)
