C/L/U Type Dual Axis Servo Positioner

A brief introduction of the product

The dual axis servo positioner is mainly composed of welded integral frame, welding displacement frame, AC servo motor and RV precision reducer, rotary support, conductive mechanism, protective shield and electrical control system. The welded integral frame is welded with high-quality profiles. After annealing and stress relieving, it shall be processed by professional machining to ensure high machining accuracy and accuracy of key positions. The surface is sprayed with anti-rust appearance paint, which is beautiful and generous, and the color can be customized according to customer requirements.


Product Detail

Product Tags

Technical Parameters

C-type double-axis servo positioner

L-type double-axis servo positioner

U-type double-axis servo positioner

Serial number

PROJECTS

Parameter

Parameter

Parameter

REMARKS

Parameter

Parameter

Parameter

REMARKS

Parameter

Parameter

Parameter

REMARKS

1

Rated load

200kg



500kg

1000kg

Within R400mm/R400mm /R600mm radius of the second axis

500kg

1000kg

2000kg

Within R400mm/R600mm /R800mm radius of the second axis

1000kg

3000KG

5000KG

Within R600mm/R1500mm /R2000mm radius of the second axis

2

Standard radius of gyration

R400mm

R400mm

R600mm



R400mm

R600mm

R800mm



R600mm

R1500mm

R2000mm



3

First axis flip angle

±180°

±180°

±180°



±180°

±180°

±180°



±180°

±180°

±180°



4

Second axis rotation angle

±360°

±360°

±360°



±360°

±360°

±360°



±360°

±360°

±360°



5

Rated upturn speed of first axis

50°/S

50°/S

15°/S



50°/S

50°/S

17°/S



17°/S

17°/S

17°/S



6

Rated rotating speed of second axis

70°/S

70°/S

70°/S



70°/S

70°/S

17°/S



24°/S

17°/S

24°/S



7

Repeat positioning accuracy

±0.10mm

±0.15mm

±0.20mm



±0.10mm

±0.10mm

17°/S



±0.15mm

±0.20mm

±0.25mm



8

Boundary dimension of displacement frame (length×width×height)

1200mm×600mm ×70mm

1600mm×800mm ×90mm

 2000mm×1200mm ×90mm



-

-

-



-

-

-



9

Overall dimension of position shifter (length×width×height)

2000mm×1100mm ×1700mm

2300mm×1200mm ×1900mm

2700mm×1500mm ×2200mm



1500mm×500mm ×850mm

2000mm×750mm ×1200mm

2400mm×900mm ×1600mm



4200mm×700mm ×1800mm

5500mm×900mm ×2200mm

6500mm×1200mm ×2600mm



10

Standard two-axis rotary plate

-

-

-

-

Φ800mm

Φ1200mm

Φ1500mm



Φ1500mm

Φ1800mm

Φ2000mm



11

Center height of the first axis rotation



1200mm

1350mm

1600mm



550mm

800mm

1000mm



1500mm

1750mm

2200mm



12

Power supply conditions

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

With isolation transformer

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

With isolation transformer

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

Three-phase 200V±10%50HZ

With isolation transformer

13

Insulation class

H

H

H



H

H

H



H

H

H



14

Net weight of equipment

About 800kg

About 1300kg

About 2000kg



About 900kg

About 1600kg

About 2500kg



About 2200kg

About 4000kg

About 6000kg

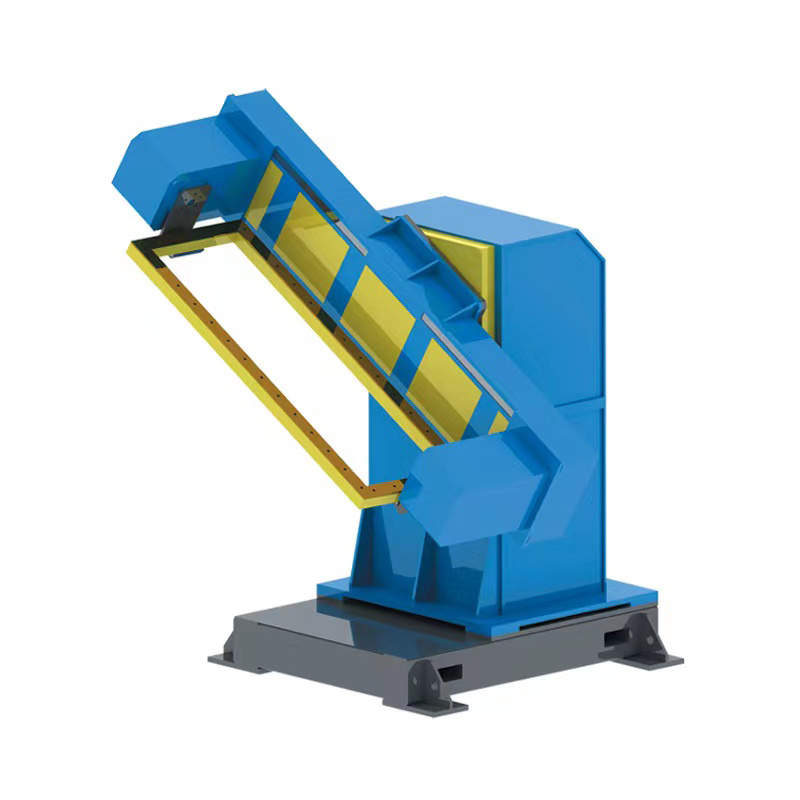

Double axis positioner

C-type double-axis servo positioner

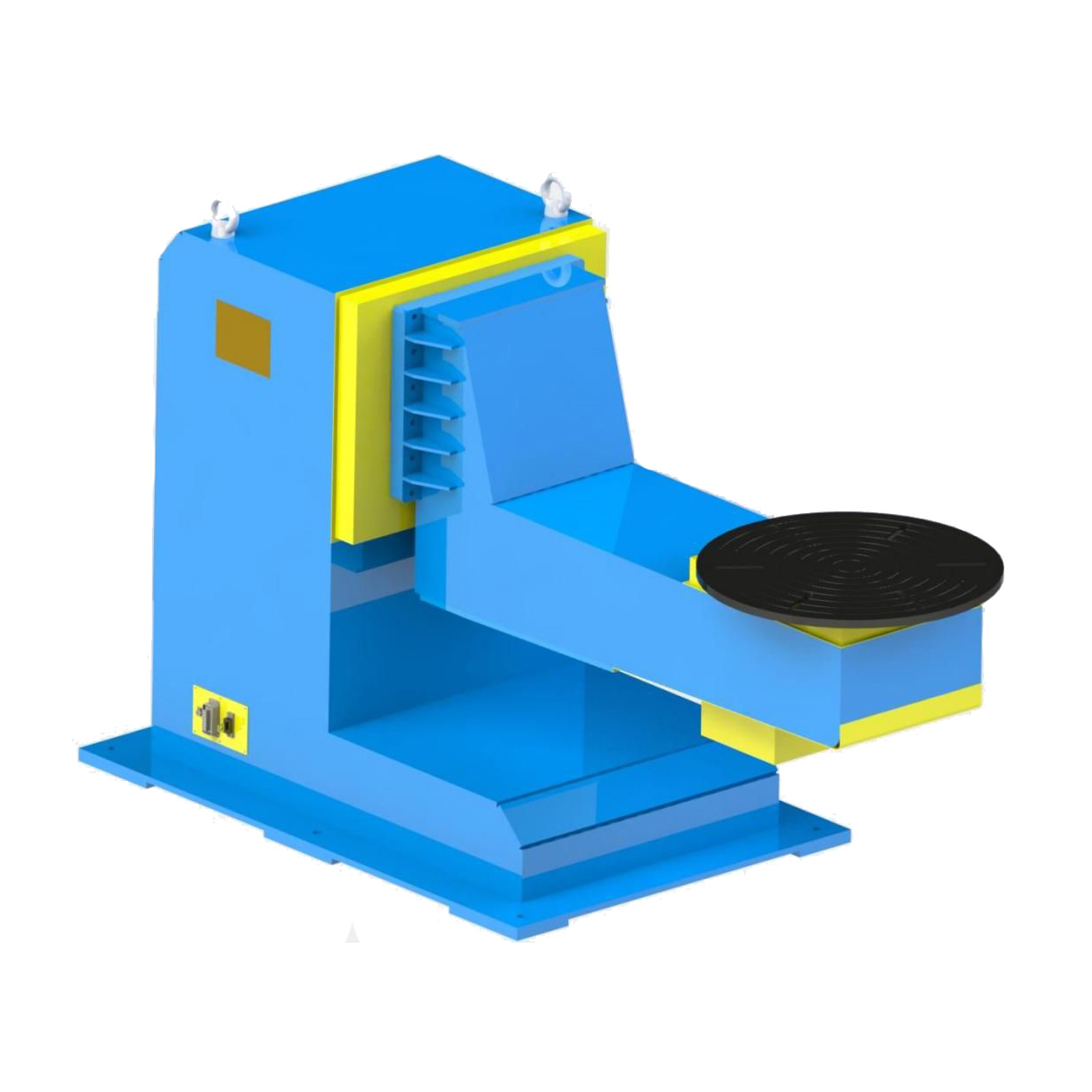

Double axis positioner (2)

L-type double-axis servo positioner

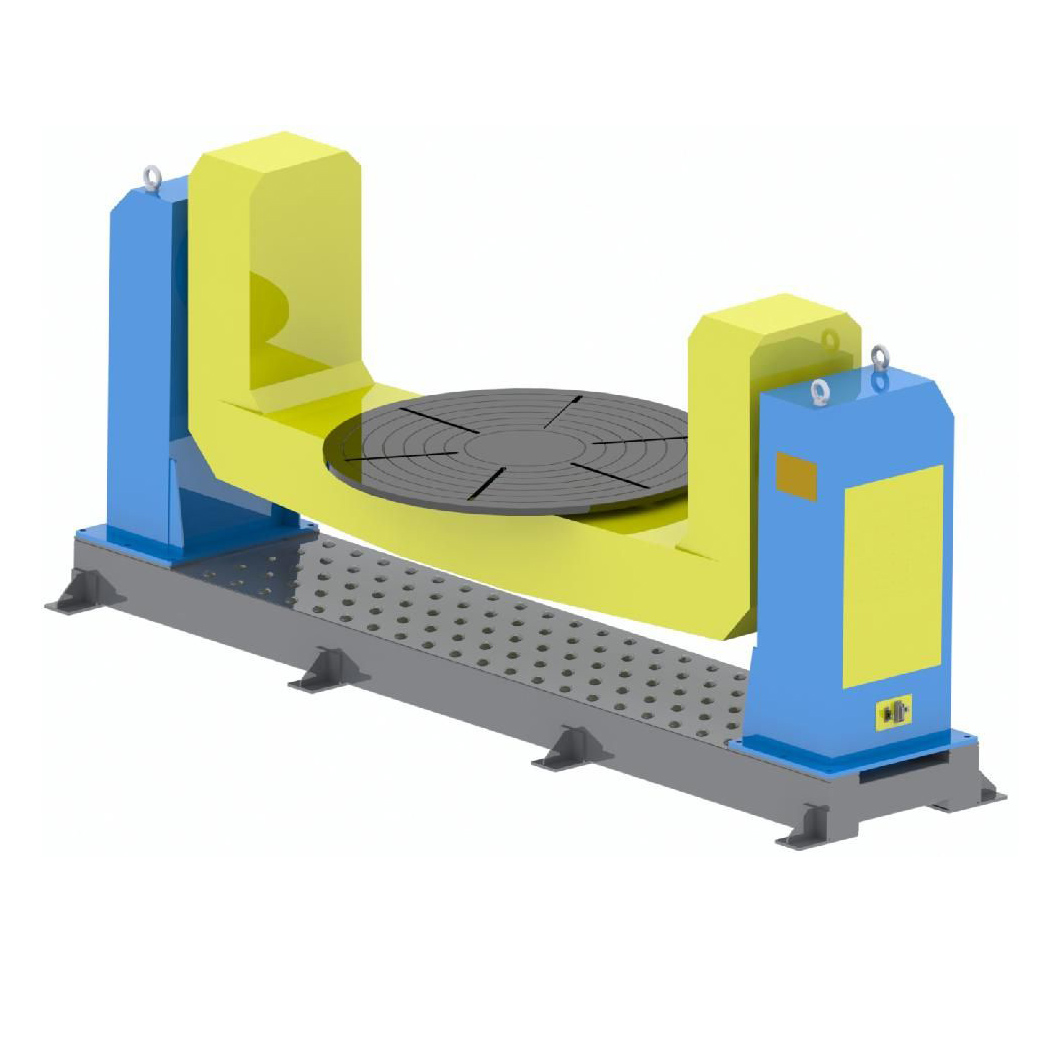

Double axis positioner (3)

U-type double-axis servo positioner

Structure Introduction

The dual axis servo positioner is mainly composed of welded integral frame, welding displacement frame, AC servo motor and RV precision reducer, rotary support, conductive mechanism, protective shield and electrical control system. The welded integral frame is welded with high-quality profiles. After annealing and stress relieving, it shall be processed by professional machining to ensure high machining accuracy and accuracy of key positions. The surface is sprayed with anti-rust appearance paint, which is beautiful and generous, and the color can be customized according to customer requirements.

The welded displacement frame shall be welded and molded with high-quality profile steel and processed by professional machining. The surface shall be machined with standard screw holes for mounting positioning tooling, and painting and blackening and rust prevention treatment shall be carried out.

The rotary platform selects high-quality profile steel after professional mechanical processing, and the surface is machined with standard screw holes for mounting positioning tooling, and blackening and rust prevention treatment shall be carried out.

Selecting AC servo motor and RV reducer as power mechanism can ensure the stability of rotation, accuracy of positioning, long durability and low failure rate. The conductive mechanism is made of brass, which has a good conductive effect. The conductive base adopts integral insulation, which can effectively protect servo motor, robot and welding power source.

The electric control system adopts Japanese Omron PLC to control the positioner, with stable performance and low failure rate. The electrical components are selected from famous brands at home and abroad to ensure the quality and stability of use.
