Stamping/ Stacking Robot SDCX RMD-300/200/160/120/35/08/110/20/50

A brief introduction of the product

The stamping robot is widely used for stacking, destacking, transportation and other tasks in the fields of packing, beverage, chemical industry, food, etc., providing users with full set of fast, safe, flexible, accurate and positioning operation solutions.


Product Detail

Product Tags

Technical Parameters

Model No.

Degree of Freedom

Driving mode

Payload (KG)

Repeated positioning accuracy (mm)

Range of motion (°)

Maximum speed (°/s)

Allowable load inertia of wrist (kg·m2)

Circular beat (cycle/hour)

Radius of motion (mm)

Local Weight

(kg)

J1

J2

J3

J4

J1

J2

J3

J4

SDCX-RMD300

4

AC servo drive

300

±0.5

±180

±

+100~-44

±

+121~-15

±360

85

90

100

190

134

1000

3150

1500

SDCX-RMD200

4

AC servo drive

200

±0.3

±180

±

+100~-44

±

+121~-15

±360

105

107

114

242

78

1300

3150

1500

SDCX-RMD160

4

AC servo drive

160

±0.3

±180

±

+100~-44

±

+121~-15

±360

123

123

128

300

78

1500

3150

1500

SDCX-RMD120

4

AC servo drive

120

±0.3

±180

±

+100~-44

±

+121~-15

±360

128

126

135

300

78

1560

3150

1500

SDCX-RMD50

4

AC servo drive

50

±0.2

±178

±

+90~-40

±

+65~-78

±360

171

171

171

222

4.5

1700

2040

660

SDCX-RMD20

4

AC servo drive

20

±0.08

±1170

±

+115~-25

±

+70~-90

±360

170

170

185

330

0.51

1780

1720

256

SDCX-RMD08

4

AC servo drive

8

±0.08

±170

±

+90~-40

±

+68~-90

±360

251

195

195

367.5

0.25

1800

1433

180

Remarks:

① The test track is 150mm high and 1000mm wide, and the actual cycle time is affected by actual working conditions;

② The test track is 200mm high and 1000mm wide, and the actual cycle time is affected by actual working conditions;

③ The test track is 400mm high and 2000mm wide, and the actual cycle time is affected by actual working conditions;

Avoid the contact with inflammable, explosive and corrosive gases and liquids; Do to be not splashed with water, oil and dust; Keep away from electrical noise sources (plasma)

Range of motion

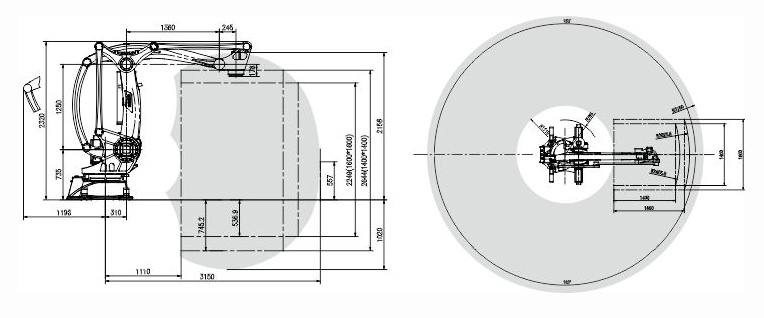

Plot of Motion Range for SDCX-RMD300/200/160/120

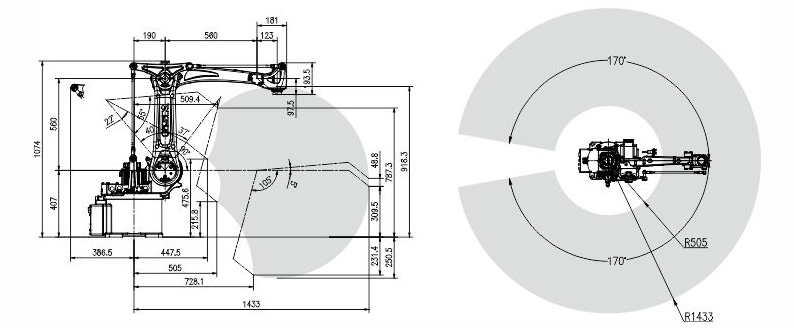

Plot of Motion Range for SDCX-RMD20

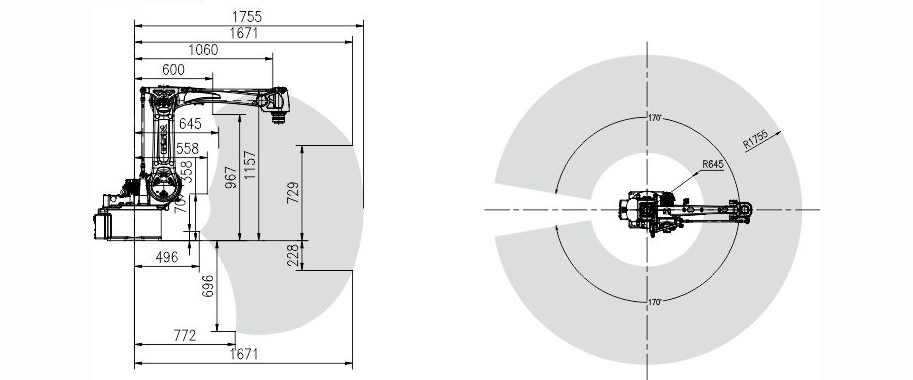

Plot of Motion Range for SDCX-RMD08

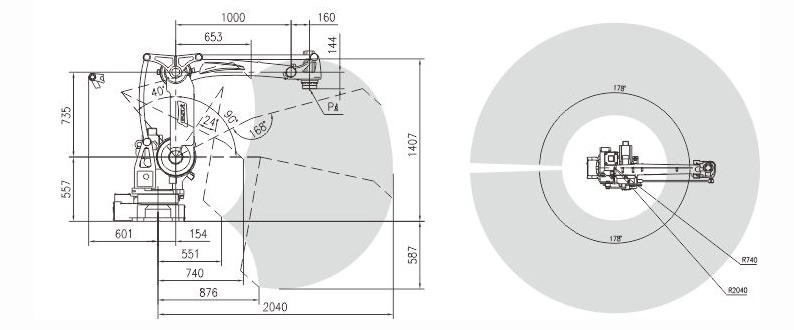

Plot of Motion Range for SDCX-RMD50
